250kw Industrial Copper Melting Furnace , Core Electric Induction Furnace

Trung Quốc 250kw Industrial Copper Melting Furnace , Core Electric Induction Furnace nhà cung cấp

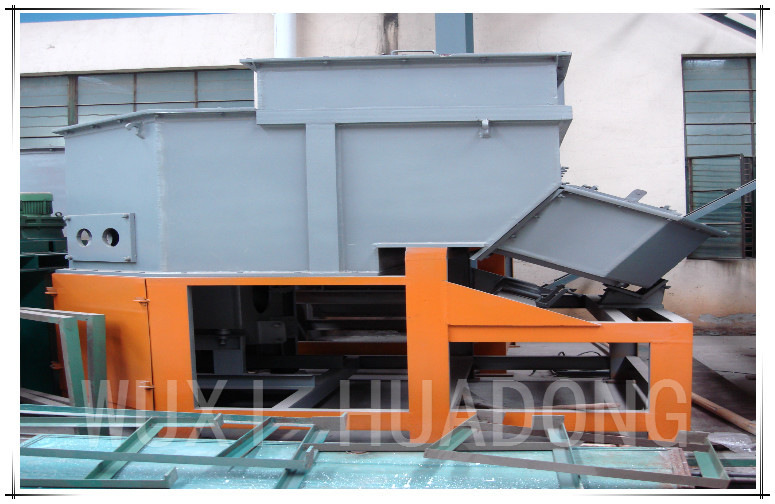

Hình ảnh lớn :  250kw Industrial Copper Melting Furnace , Core Electric Induction Furnace

Thông tin chi tiết sản phẩm:

Place of Origin: China
Hàng hiệu: Jingjie
Model Number: GVT

Thanh toán:

Minimum Order Quantity: 1set
Giá bán: negotiation
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Contact Now
Chi tiết sản phẩm
Product material: Red Copper Melting power: 250kw
Holding power: 180kw Phase number: 3 phase
Frequency: 60Hz Maximum capacity: 3t/h



250kw Industrial Copper Melting Furnace , Core Electric Induction Furnace​



1 Melting furnace


1.1 Main technical parameters
The work capacity: 2.5 - 3T;
The highest melting temperature: 1250 degrees centigrade;
The compensated power factor: 0.95-1.
The three-phase power supply. The current imbalance: less than 5%.
The detachable induction body. 600V, 250KW, 50HZ, "W" type spray flu, the inner hole is a rectangular metal
Ditch, water jacket and coil.
Oval mouth, electrolytic plate can not cut the whole hanging into the feeding.
The tilting angle: 92 degrees, which can be emptied of liquid copper furnace, and is convenient for loading and unloading induction body.


1.2 Characteristics
1. The quality of domestic production of copper cored induction furnace for furnace construction materials, improve the service life, reduce the temperature of the housing.
2. Set the auxiliary tools, convenient installation and maintenance of the sensor body.
3. The "W" type spray flu, is conducive to the molten metal liquid channel directional flow, improve the heat efficiency, reduce
Temperature difference between the upper and lower parts of the groove, and improve the service life of the induction body.


2 Holding furnace


2.1 Main technical parameters
The work capacity: 3 - 4T;
The maximum operating temperature: 1250 degrees centigrade;
Automatic / manual control of liquid temperature;
Accuracy: + 3.
The compensated power factor: 0.95-1.
The three-phase power supply. The current imbalance: less than 5%.
The detachable induction body. 50HZ, 380V, 180KW.
Can have melting and heat insulating functions.
Rearward tilting angle: 92 degrees, replacement and convenient handling induction body is convenient for crystallizer.


2.2 Characteristics
1. The quality of domestic production of copper cored induction furnace for furnace construction materials, improve the service life, reduce the temperature of the housing.
2. Set the auxiliary tools, convenient installation and maintenance of the sensor body.body weight
Heating temperature: 1200-1300
Heat preservation temperature: 1150 ~ 1200
There is class voltage regulation: 100V~600V ten
Cooling: water cooling
The cooling water temperature that is not higher than 40 DEG (coil, water jacket, water temperature measuring device)
Cooling water: 20 ~ 40t/h
Cooling water pressure: 0.2 ~ 0.4MPa
Groove type: W type rectangular jet melting groove




Wuxi Huadong Industrial Furnace Co.,Ltd
Welcome to visit and inspect!
Contact persone: Angel Zhang
Contact phone:+86-13921168736
Email: wxzhangying@126.com
