Professional Multi Function Hot Steel Rolling Mill Φ8mm - Φ30mm
1set
MOQ
negotiation
giá bán
Professional Multi Function Hot Steel Rolling Mill Φ8mm - Φ30mm
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông tin cơ bản
Place of Origin: China
Hàng hiệu: BOLONG
Chứng nhận: CE,SGS
Model Number: Semi-continuous
Điểm nổi bật:

hot rolling machine

,

hot rolled mill

Thanh toán
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 2sets per year
Thông số kỹ thuật
Product material: 60x60-200x200(mm) billets
Product: Φ8~Φ30mm hot-rolled deformed bar
Power: 55-160KW
Chứng nhận: CE&ISO
Rolling mill layout type: semi-continuous
Annual capacity: 50000T-300000T
Mô tả sản phẩm

Professional Multi Function Hot Steel Rolling Mill Φ8mm - Φ30mm




HOT ROLL MILL PROCESS EQUIPMENT
Standard supply scope


Mechanical part
1 Ladle turret/ladle moving car/ladle fixed support (determined by customers)
2 Tundish
3 Tundish car
4 Mould
5 Mould vibration device
6 Vibration drive device
7 Protecting cover for vibration device
8 Secondary coolings spraying frame
9 Secondary coolings spraying pipe
10 Spraying nozzle for secondary cooling water
11 Support roller device for secondary and thirdly cooling
12 Withdrawal straightening machine
13 Transmission device for withdrawal straightening machine
14 Universal joint
15 Rigid dummy bar
16 Dummy bar storage device
17 Guide roller for dummy bar storage device
18 Billet delivery roller table
19 Hydraulic billet pusher
20 Platform for billet collection
21 Flame cutting machine/hydraulic shear (determined by customers)
Electrics control system
23 Control system for mould vibration
24 Control system for withdrawal straightening machine
25 Effective control system for dummy bar
28 Control system for billet delivery roller table
29 Control system for billet out
30 Control system for central hydraulic station
Steel structure
31 Main casting platform
32 Casting platform
33 Platform for dummy bar storage
Auxiliary system
34 Hydraulic system
35 Discharging device for secondary coolings steam
36 Control system for secondary cooling water
37 Suspended operation box for withdrawal straightening part
38 Special configuration can be provided in accordance with customers requirements

















Process Introduction:

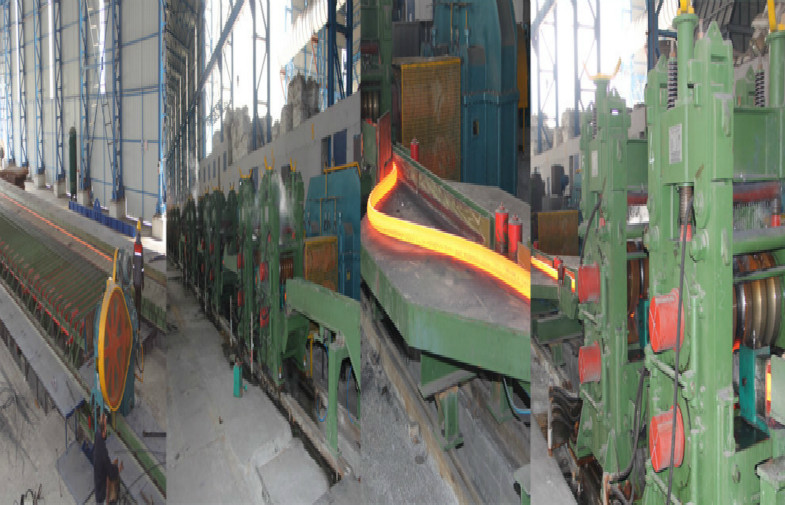

Qualified cold billet lifted to charging roller table by crane to arrive at furnace end of reheating furnace, then to be pushed into reheating furnace for heating by billet pusher. When billet temperature reaches to 1150-1250℃, billet will be pushed out of furnace by billet-out device; via furnace out roller table and working roller table before rolling mill, billet will go into rough rolling mill, intermediate rolling mill and finish rolling mill step by step. The final products will go through remained heat treatment device and be cut by multiple-length flying shear and then arrive to cooling bed for cooling by cooling bed entering device after speed-up roller table. After cooling, by cooling bed exit device, the products will be transferred to run-out roller table, and then go to cut-to-length shear. After cut-to-length cutting and inspection, the final products will be transferred to final product span from final product cross span inspection bracket and then being collected, bundled, weighed, labeled and finally stored.





Company Introduction

Wuxi Bolong Machinery Co.,Ltd is an an integrated professional metallurgy machinery manufacturer in designing and producing continuous casting machine, hot rolling mill production line. Our company is competent to undertake turnkey metallurgical project including project design, manufacture, installation, commissioning and after-sales service. Our products are covered all kinds of continuous casting machine with radius from 3 meters to 13 meters, such as round billet, square billets and slabs; various specifications of Roughing Mill, Intermediate Rolling Mill, Finishing mill could be designed and manufactured to produce deformed bar, wire rod with the diameter 8mm-40mm.






Welcome to China visit and inspect our factory!
Welcome to visit and inspect!
Contact persone: Angel Zhang
Contact phone:+86-13921168736
Email: wxzhangying@126.com
