High Power Electric Resistance Furnace Heat Treatment 11 Ton Loading Capacity

Trung Quốc High Power Electric Resistance Furnace Heat Treatment 11 Ton Loading Capacity nhà cung cấp

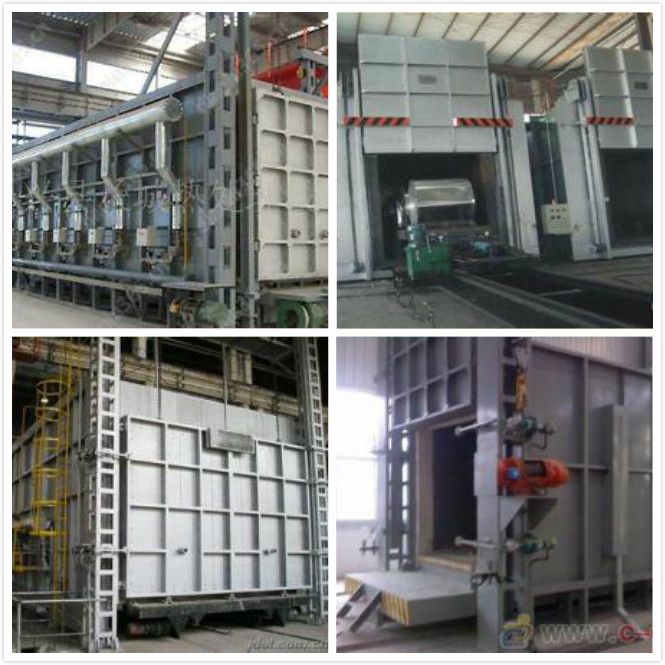

Hình ảnh lớn :  High Power Electric Resistance Furnace Heat Treatment 11 Ton Loading Capacity

Thông tin chi tiết sản phẩm:

Place of Origin: China
Hàng hiệu: Jingjie
Model Number: RT2

Thanh toán:

Minimum Order Quantity: 1set
Giá bán: negotiation
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Contact Now
Chi tiết sản phẩm
Rated power: (30-300)KW Working temperature: (650-900)℃
Max. temperature: 1000℃ Max. loading capacity: 11Ton
Frequency: 60Hz Temperature control precision: ±1



High Power Electric Resistance Furnace Heat Treatment 11 Ton Loading Capacity​





Brief

RT series bogie-hearth heat treatment furnace is national standard energy-saving heat treatment furnace, using the following heat treatment processes: quenching, tempering, normalizing and other heat treatment. This series furnace can be divided into large and small bogie hearth resistance furnace.



Application field

RT series bogie-hearth heat treatment furnace is mainly used for the following metal mechanical parts:

1 Large and medium-sized high chrome;
2 High manganese steel casting, gray iron castings, nodular cast iron, roller;
3 Steel ball;
4 Hammerhead of the crusher;
5 Wear-resisting liners;
6 Pressure vessel;
7 Slewing bearing;
8 Large axial;
9 Mould material.



Advantages

1. Large loading capacity, strong heat treatment ability, high efficiency and low operation cost;



2. The furnace linings is made of the complete fiber structure, compared to the brick furnace chamber, effectively improve the performance of heat preservation.;



3. For the small and medium size furnace, no need to installation basic foundation, integration of rail, can be used on a level ground.



4. Large -scale electric furnace adopts multiple district heating, in order to improve the temperature uniformity, the heating elements are installed at the furnace door, backwall and bogie, high-power electric furnace, equipped with multi automatic temperature control cabinet, respectively for district heating automatic temperature control;



5. The operation of the furnace door and bogie is fully automatic control. Each electric box is equipped with several pieces of instrument and automatic observer which can provide the controlling of the furnace temperature, automatic recording, over temperature automatic power-off protection and so on.



Main technical parameters

Model

Rated

power

(KW)

Rated

voltage

(V)

Max.

temperature

(℃)

Working

temperature

(℃)

Furnace hearth

size(L*W*H)

(mm)

Max.loading

capacity

(kg)

Heating

elements

connection

No-load

hearting up

time(h)

No-load

power

losses

Temperature

control

precision

RT2-30-9 30 380 1000 650-950 950*500*450 500 Y ≤2.5 ≤11 ±1
RT2-65-9 65 380 1000 650-950 1200*600*450 1000 Y ≤2.5 ≤11 ±1
RT2-75-9 75 380 1000 650-950 1500*750*600 1500 Y ≤2.5 ≤18 ±1
RT2-90-9 90 380 1000 650-950 1600*800*600 2000 Y ≤2.5 ≤19 ±1
RT2-105-9 105 380 1000 650-950 1800*900*650 3000 Y ≤2.5 ≤27 ±1
RT2-150-9 150 380 1000 650-950 2000*1000*700 4500 Y ≤3 ≤32 ±1
RT2-180-9 180 380 1000 650-950 2100*1050*750 5000 Y ≤3 ≤39 ±1
RT2-220-9 220 380 1000 650-950 2400*1050*800 7000 Y ≤3.5 ≤50 ±1
RT2-250-9 250 380 1000 650-950 2500*1300*900 8000 Y ≤4 ≤60 ±1
RT2-270-9 270 380 1000 650-950 3000*1500*1000 9000 Y ≤4 ≤65 ±1
RT2-280-9 280 380 1000 650-950 2800*1500*1200 10000 Y ≤4 ≤67 ±1
RT2-300-9 300 380 1000 650-950 3000*1500*1200 11000 Y ≤4 ≤70 ±1



Remarks: Various furnace sizes can be designed and manufactured as user’s needs.



Structure

RT series bogie-hearth heat treatment furnace consist of furnace shell, furnace linings ,furnace door, door hoisting appliance, heating element, bogie and driving mechanism, sealing mechanism, intelligent electrical control system, etc.
