Two Roller Copper Wire Cold Rolling Mill Flexible 8 Frame Energy Saving

Trung Quốc Two Roller Copper Wire Cold Rolling Mill Flexible 8 Frame Energy Saving nhà cung cấp

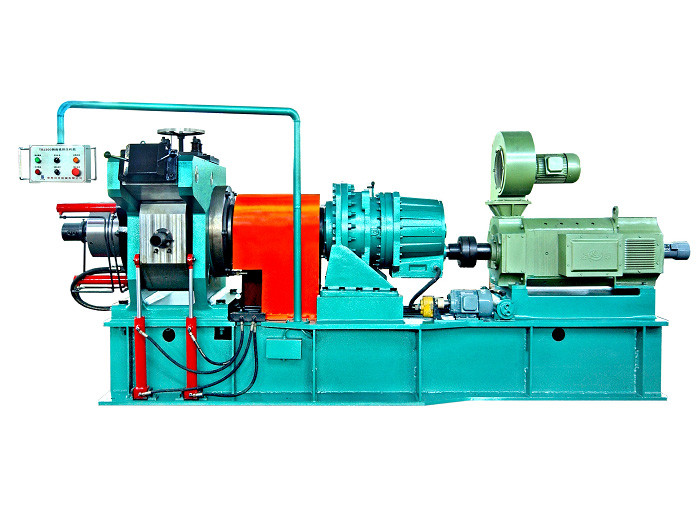

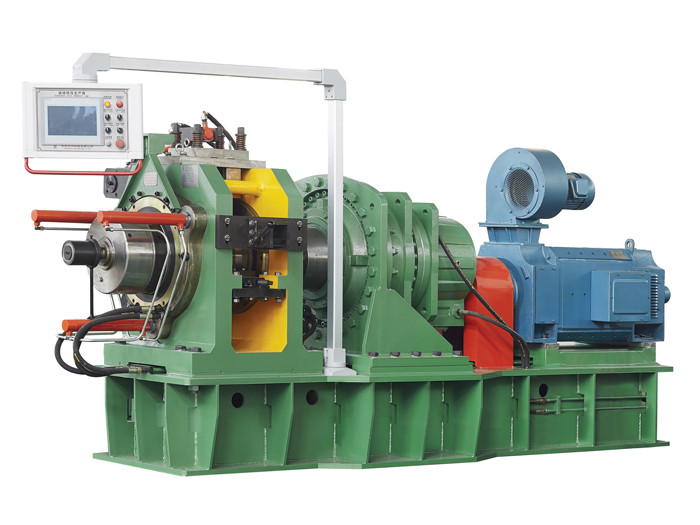

Hình ảnh lớn :  Two Roller Copper Wire Cold Rolling Mill Flexible 8 Frame Energy Saving

Thông tin chi tiết sản phẩm:

Place of Origin: China
Hàng hiệu: Jingjie
Model Number: TZJ-250

Thanh toán:

Minimum Order Quantity: 1set
Giá bán: negotiation
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Contact Now
Chi tiết sản phẩm
Product material: Φ250 copper rod Product: Φ17-Φ7.8 copper wire
Motor Power: 110kw Type: 2-roll


Two Roller Copper Wire Cold Rolling Mill Flexible 8 Frame Energy Saving

TZJ-250 type 2-roll copper rod cold rolling mill machine
Main technical parameters

Type 2508 frame
Roll diameterΦ250
Motor power110kw
Maximum rolling material(mm)Φ17
Product specification (mm)Φ7.8
Rolling formTwo rolls alternation of horizontal and vertical to rolling
Shape of holesOval circular
Number of rolling8
Total coefficient of elongation4.51
Finishing rolling speed(m/s)1.65



Energy saving and environmental protection type wire drawing machine
Main technical parameters

1Drawing materialCopper alloy and copper rod
2Equipment typeHorizontal arrangement, semi diffuse lubrication, each wire drawing wheel adopts independent motor
3Motor powerYVP 3DKW*12
4Drawing modulus13n
5Capstan diameterΦ450mm
6Drum form and number

Split type
12n

7Drum diameterΦ450mm
8Inlet wire diameterΦ8mm
9Minimum outlet diameterΦ3.1mm-Φ1.2mm
10Outlet speedΦ3.0mm 700n/min
11Output

Φ4.5mm (360n/min) 3000kg/h
Φ3.0mm 2500kg/h

12Main motor powerYVP 3DKW*12
13Capstan motor powerYVP SOKW
14Driving modeSynchronous toothed belt drive
15Electric controlTouch screen and PLC control
16Control modeFrequency control
17Annealing voltage65V
18Maximum annealing current5000A
19Annealing speed300-1000m/min
20Winder model

SD-800 inversions
Plum blossom fall line type

21Winding machine power22kw-18kw
22Other winder modelSP-630 double disc automatic changing disc type
23Winding machine power22kw*2



Cold drawing machine
Main technical parameters

TypeLW5LW8LW10LW15LW20LW30LW40LW60
Rated drawing force50x10³80x10³100x10³150x10³200x10³300x10³400x10³600x10³
Maximum admitted diameterΦ30Φ32Φ40Φ45Φ45Φ50Φ60Φ80
Maximun Reducing Rale2030303030303030
Drawing Speed10101099999
No. Of Drawing Length24668888
Maximun Drawing Length88101010101010
Returning Speed of the Vehice6060606060606060
Motor Power18.5303745557590115
Motor Speed980980980980980740740740
Speed Raducer TypeJZQ500JZQ650JZQ750JZQ850JZQ1000ZS1150JZQ1250JZQ1350
Total Weight60008000110001500022000310004000045000


Our company can perform specific designing and developing according to customers' specific requirements.

Wuxi Huadong Industrial Furnace Co.,Ltd
Welcome to visit and inspect!
Contact persone: Angel Zhang
Contact phone:+86-13921168736
Email: wxzhangying@126.com
