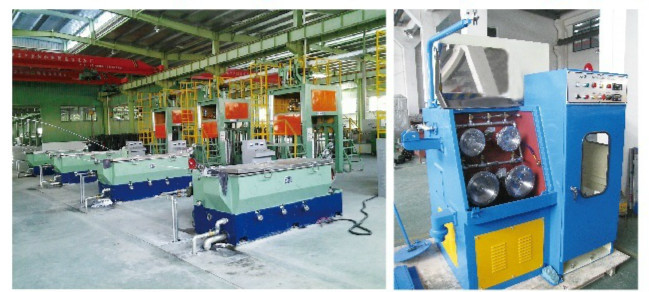

Industrial Copper Wire Drawing Machinery Electric Touch Screen Control

Trung Quốc Industrial Copper Wire Drawing Machinery Electric Touch Screen Control nhà cung cấp

Hình ảnh lớn :  Industrial Copper Wire Drawing Machinery Electric Touch Screen Control

Thông tin chi tiết sản phẩm:

Place of Origin: China
Hàng hiệu: Jingjie
Model Number: TZJ-250

Thanh toán:

Minimum Order Quantity: 1set
Giá bán: negotiation
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Contact Now
Chi tiết sản phẩm
Product material: Φ250 copper rod Product: Φ17-Φ7.8 copper wire
Motor Power: 110kw Type: 2-roll



Industrial Copper Wire Drawing Machinery Electric Touch Screen Control​




Main technical parameters

1 Drawing material Copper alloy and copper rod
2 Equipment type Horizontal arrangement, semi diffuse lubrication, each wire drawing wheel adopts independent motor
3 Motor power YVP 3DKW*12
4 Drawing modulus 13n
5 Capstan diameter Φ450mm
6 Drum form and number

Split type
12n

7 Drum diameter Φ450mm
8 Inlet wire diameter Φ8mm
9 Minimum outlet diameter Φ3.1mm-Φ1.2mm
10 Outlet speed Φ3.0mm 700n/min
11 Output

Φ4.5mm (360n/min) 3000kg/h
Φ3.0mm 2500kg/h

12 Main motor power YVP 3DKW*12
13 Capstan motor power YVP SOKW
14 Driving mode Synchronous toothed belt drive
15 Electric control Touch screen and PLC control
16 Control mode Frequency control
17 Annealing voltage 65V
18 Maximum annealing current 5000A
19 Annealing speed 300-1000m/min
20 Winder model

SD-800 inversions
Plum blossom fall line type

21 Winding machine power 22kw-18kw
22 Other winder model SP-630 double disc automatic changing disc type
23 Winding machine power 22kw*2



Cold drawing machine
Main technical parameters

Type LW5 LW8 LW10 LW15 LW20 LW30 LW40 LW60
Rated drawing force 50x10³ 80x10³ 100x10³ 150x10³ 200x10³ 300x10³ 400x10³ 600x10³
Maximum admitted diameter Φ30 Φ32 Φ40 Φ45 Φ45 Φ50 Φ60 Φ80
Maximun Reducing Rale 20 30 30 30 30 30 30 30
Drawing Speed 10 10 10 9 9 9 9 9
No. Of Drawing Length 2 4 6 6 8 8 8 8
Maximun Drawing Length 8 8 10 10 10 10 10 10
Returning Speed of the Vehice 60 60 60 60 60 60 60 60
Motor Power 18.5 30 37 45 55 75 90 115
Motor Speed 980 980 980 980 980 740 740 740
Speed Raducer Type JZQ500 JZQ650 JZQ750 JZQ850 JZQ1000 ZS1150 JZQ1250 JZQ1350
Total Weight 6000 8000 11000 15000 22000 31000 40000 45000


Our company can perform specific designing and developing according to customers' specific requirements.



Wuxi Huadong Industrial Furnace Co.,Ltd
Welcome to visit and inspect!
Contact persone: Angel Zhang
Contact phone:+86-13921168736
Email: wxzhangying@126.com
